Introduction: What Are Braces in Steel Structures?
Braces are an integral part of steel structures, providing stability and strength by resisting lateral forces such as wind and seismic loads. Commonly found in buildings, bridges, and towers, braces help maintain the overall stability of the structure by distributing these lateral forces throughout the framework. They ensure that the primary structural elements, like beams and columns, remain in place under varying loads.
How Do Braces Work?
The fundamental principle behind braces is the ability to resist both tensile and compressive forces. In many ways, braces function similarly to the members in a truss structure, where they work together to form a stable triangular geometry that distributes loads efficiently.
- Tensile Braces: When a brace is under tension, it is stretched, which allows it to resist lateral forces effectively. Tensile braces prevent the sides of the structure from moving apart under load.
- Compressive Braces: Under compression, braces help prevent buckling of columns and beams by providing lateral support, keeping the structure from swaying or collapsing.
Braces are particularly important in tall buildings and structures exposed to significant lateral loads, as they help manage the additional forces that these structures encounter.
Types of Braces and Their Components
Braces come in various configurations, each suited for different types of loads and structural systems. Common types include:
- Diagonal Braces: Placed diagonally between beams and columns, these braces are the most common and provide effective lateral support.
- V-Braces and Chevron Braces: Arranged in a V-shape or inverted V, these braces connect to a central point on a beam, providing balanced support.
- X-Braces: X-braces consist of two diagonal members crossing each other, providing excellent resistance to both tension and compression.

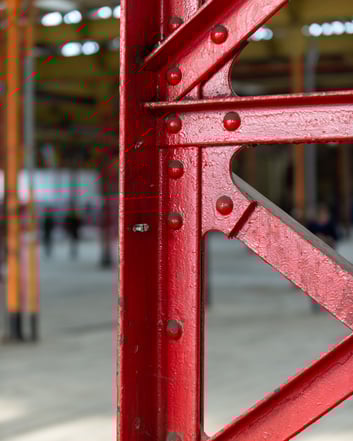

Key Components of Braces
Braces are typically composed of several key components that ensure their effective integration into the structural framework:
- Gusset Plates: Gusset plates are flat, thick sheets of steel that connect braces to other structural members like beams or columns. They help transfer the forces from the brace into the larger structure, making them a crucial element in the overall stability of the connection.
- Steel Angles (L-Shaped Sections): L-shaped sections are often used as braces because of their ability to handle loads in multiple directions. Their geometry allows them to provide both tensile and compressive strength.
- Hollow Structural Sections (HSS): These are tubular steel sections that are sometimes used for braces due to their high strength-to-weight ratio and uniform distribution of stress around their cross-section.
Common Connection Methods
Braces need to be properly connected to other structural members to function effectively. Here are some typical connection methods:
- Bolted Connections: Bolting is a common method for connecting braces to gusset plates. It provides a strong and reliable connection that can be easily adjusted or replaced if needed.
- Welded Connections: Welding is often used for a more seamless connection between braces and other steel members. It provides a high degree of stiffness but can be more challenging to adjust once the weld is complete.
Key Variables in Brace Analysis
When analyzing and designing braces, engineers need to consider various factors to ensure the structure's stability and safety. These include:
- Slenderness Ratio: The slenderness ratio of a brace is the ratio of its length to its radius of gyration. A high slenderness ratio can increase the likelihood of buckling under compressive loads, making it a critical factor in brace design.
- Axial Load Capacity: Braces are subjected to axial loads, both tensile and compressive. It's essential to calculate the capacity of each brace to handle these loads without failure. This involves considering the cross-sectional area, material properties, and any additional loads from other structural members.
- Connection Design: The design of the connections, including the size and arrangement of bolts or the length of welds, directly affects the brace's ability to transfer loads. Connection strength is a key variable that needs to be considered during analysis to prevent joint failure.
- Buckling Resistance: For braces under compression, buckling resistance is a critical aspect of their design. Engineers must evaluate the brace's ability to resist buckling, which depends on the member’s length, cross-section, and end conditions (such as whether the ends are fixed or pinned).
- Dynamic Loads: In areas prone to earthquakes or high wind speeds, the dynamic effects on braces must be considered. These loads can cause rapid fluctuations in the tensile and compressive forces on the braces, requiring a design that can withstand these conditions without failure.
▲ Brace Calculation & Design Sample File
Conclusion: The Role of Braces in Structural Stability
Braces play a vital role in the stability and resilience of steel structures by providing resistance to lateral forces, maintaining the structural integrity under various load conditions. Through careful analysis of variables like slenderness ratio, axial load capacity, and connection design, engineers can create bracing systems that enhance the overall strength and safety of the structure.
Whether used in high-rise buildings to prevent swaying or in bridge structures to distribute load, braces are essential for ensuring that steel structures remain secure and efficient throughout their lifespan. A well-designed bracing system is not only a structural necessity but a safeguard against the unpredictable forces that these structures face.
